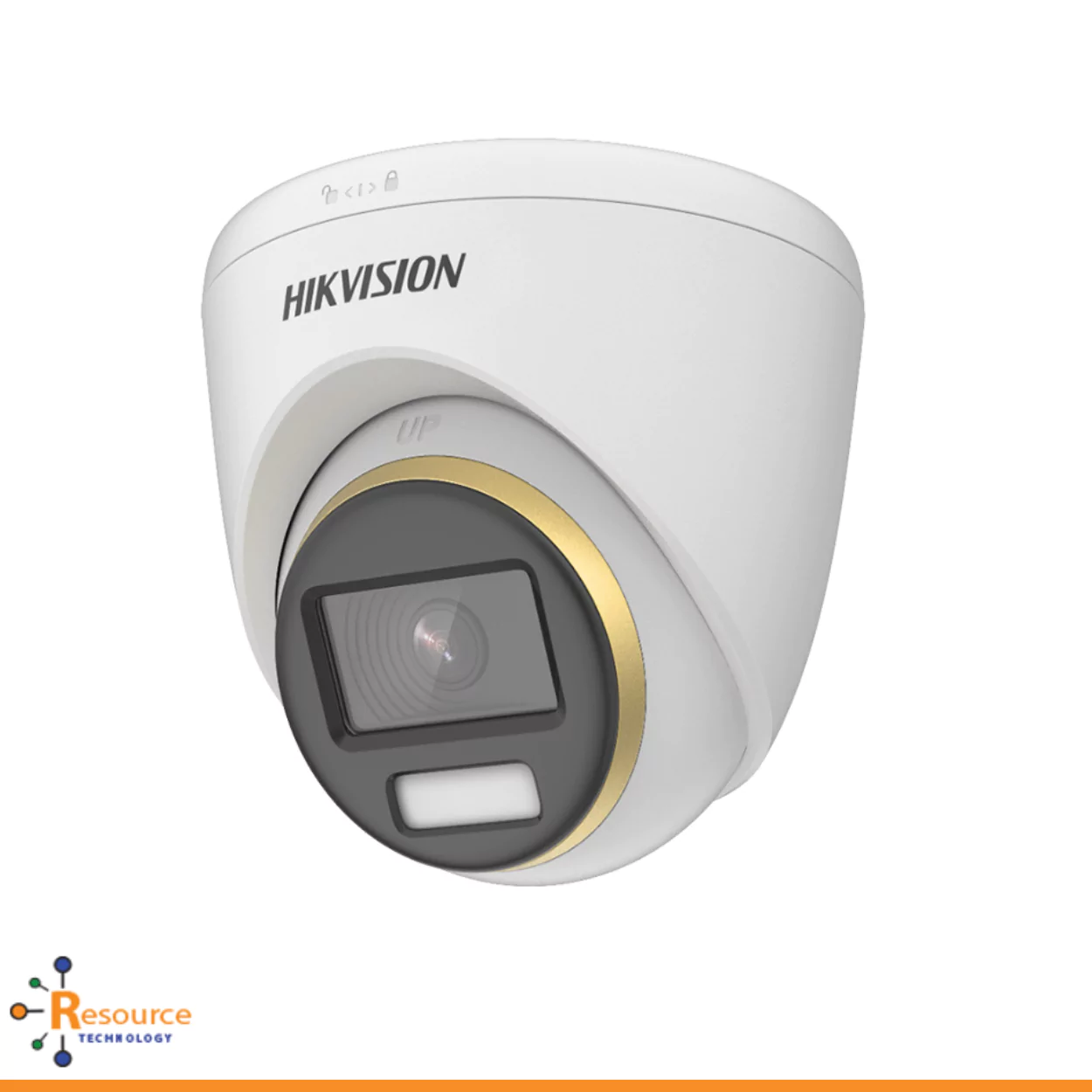

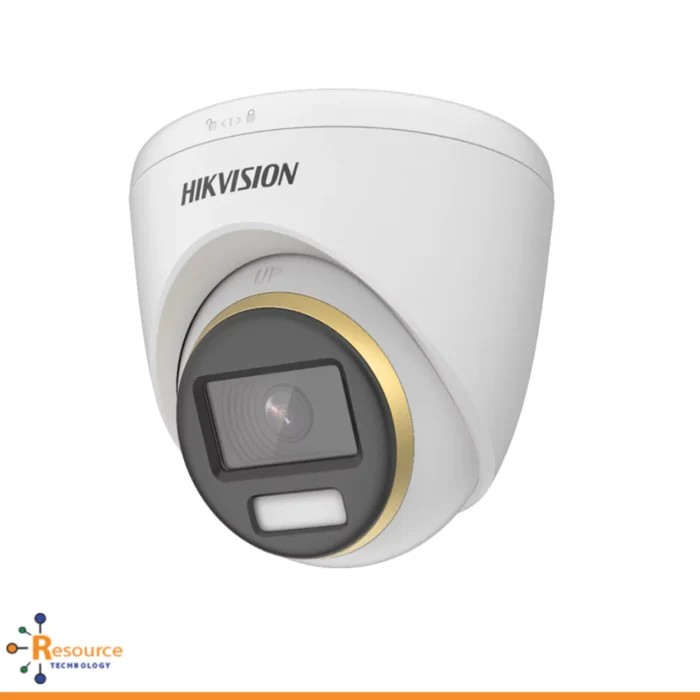

Hikvision DS-2CE72DF3T-F 2MP ColorVu Doom Camera

Hikvision DS-2CE72DF3T-F is a 2MP ColorVu dome camera that delivers clear and vivid images in low-light and even ultra-low-light conditions. It features a 1/2.8″ progressive scan CMOS sensor with a fixed focal length lens (available in 2.8mm, 3.6mm, and 6mm options). It also has a wide dynamic range (WDR) of 130dB, which helps to reduce glare and improve image clarity in high-contrast scenes.

Hikvision DS-2CE72DF3T-F 2MP ColorVu Doom Camera

Camera:

• Image Sensor 2 MP CMOS
• Signal System PAL/NTSC
• Resolution1920 (H) × 1080 (V)
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light ON
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Slow Shutter Max. 16 times

Lens:

• Lens 2.8 mm, 3.6 mm, 6 mm Fixed Lens
• Field Of View

  2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

  3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

  6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°

• Lens MountM12
• Light Alarm Solid Light Alarm (White Light)
• Day & Night 24/7 Color Imaging
• WDR (Wide Dynamic Range)≥130 dB
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Image:

• White Light: Auto/Off
• Image Mode: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Color
• White Balance: Auto/Manual
• AE (Auto Exposure) Mode: WDR; BLC; HLC; Global; HLS
• Privacy Mask4 programmable privacy masks
• Motion Detection4 programmable motion areas
• Noise Reduction3D DNR/2D DNR
• Language: English
• Function Defective Pixel Correction; Sharpness; Mirror; Contrast; Brightness; Anti-Banding; Smart Light
• Lighting Mode: White Light

Interface:

• Video Output: Switchable TVI/AHD/CVI/CVBS

Hikvision DS-2CE72DF3T-F 2MP ColorVu Doom Camera General:

• Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ± 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption Max. 4.2 W
• Protection Level IP67
• Material Main body: Metal, Enclosure: Plastic
• White Light range up to 40 m
• Communication: HIKVISION-C
• DimensionΦ 109.98 mm × 98.27 mm (Φ 4.33″ × 3.87″)
• Approx. 348.5 g (0.77 lb.)
