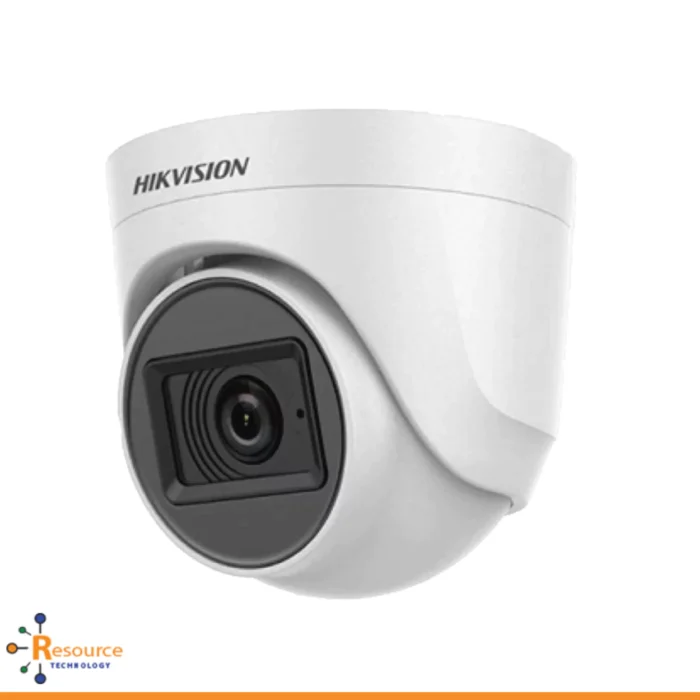

Hikvision DS-2CE76D0T-ITPFS 2MP Audio Camera

Hikvision DS-2CE76D0T-ITPFS 2MP Audio Camera

Camera:

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
• Signal System PAL/NTSC
• Lens:

• Lens Type 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
• Lens MountM12

• Image:
•  Parameters Switch STD/HIGH-SAT
•  Settings Brightness, Sharpness, Mirror, Smart IR
• Frame Rate TVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
• Day/Night Mode :Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image enhancements
• White Balance: Auto/Manual
• AGC Support
• Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS

DS-2CE76D0T-ITPFS 2MP Audio Camera General:

• Material Plastic
• Dimension Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
• Approx. 140.5 g (0.31 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication: HIKVISION-C
• Language: English
• Power Supply12 VDC ± 25%
• Consumption: Max. 2.7 W
• IR Range Up to 20 m
