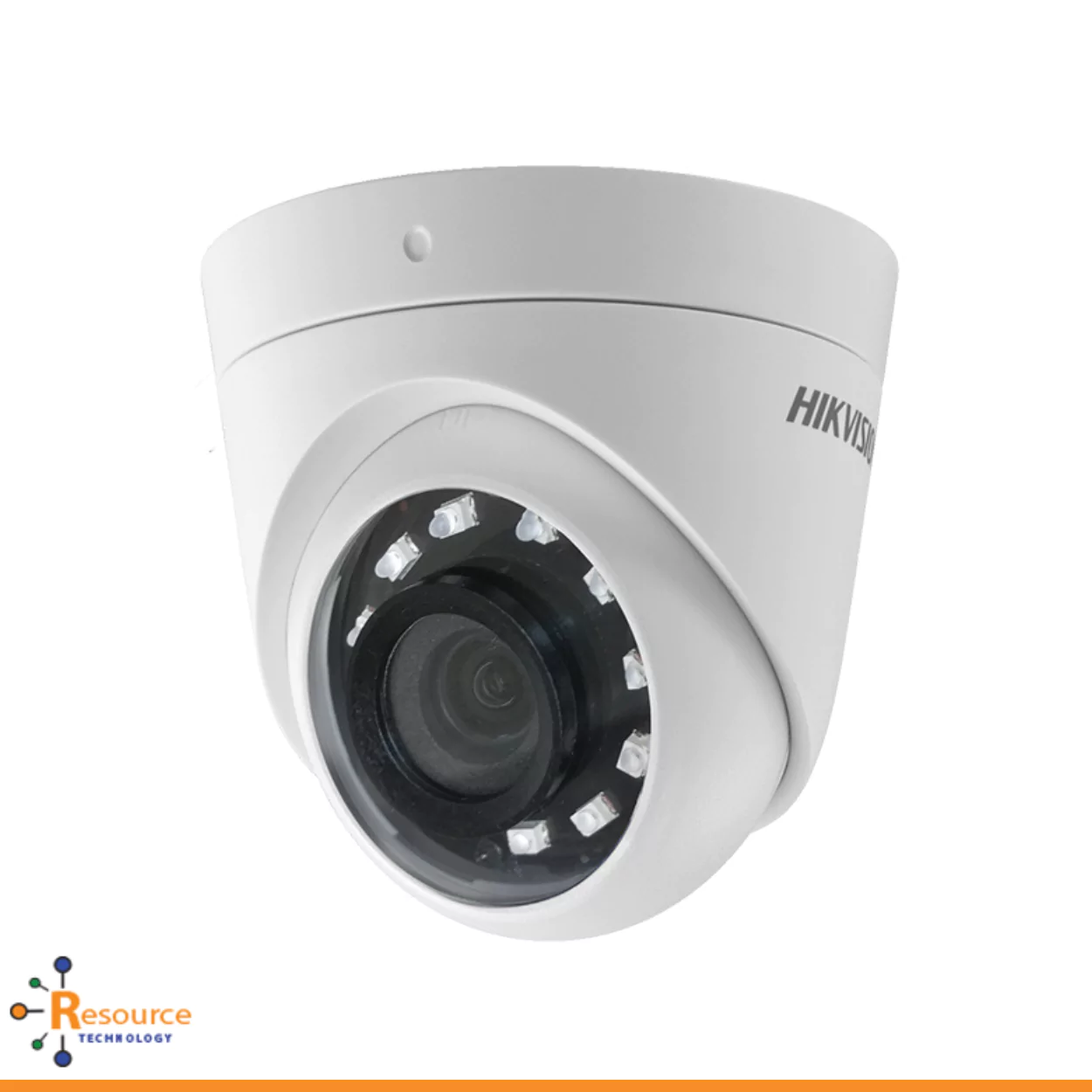

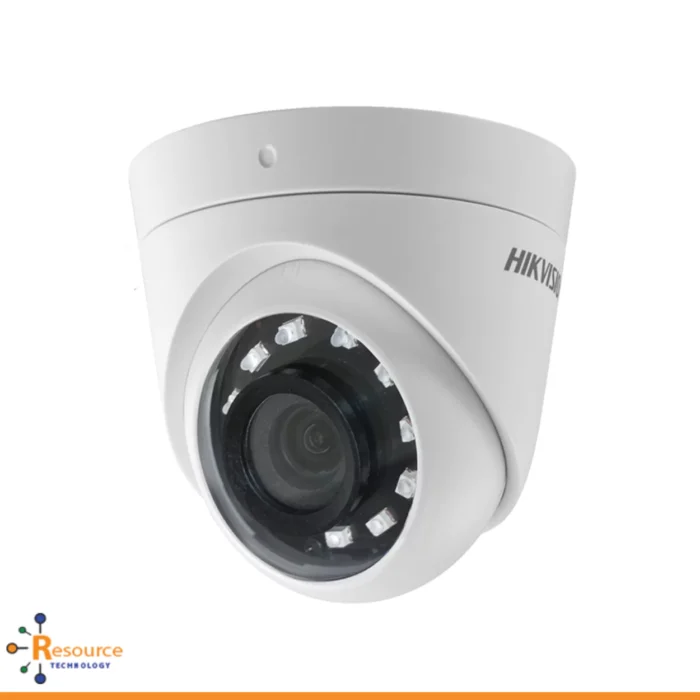

Hikvision DS-2CE56D0T-I2PFB 2MP Doom Camera

Hikvision DS-2CE56D0T-I2PFB 2MP Doom Camera

Camera:

• Image Sensor 2 MP CMOS
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & Night ICR
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
• Signal System PAL/NTSC

Lens of Hikvision DS-2CE56D0T-I2PFB

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV106.4° (2.8 mm), 79.6° (3.6 mm), 51.9° (6 mm)
• Lens MountM12

Image:

• Parameters Switch STD/HIGH-SAT
• Settings Brightness, Sharpness, Mirror, Smart IR
• Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
• Day/Night Mode Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement BLC, HLC
• White Balance Auto/Manual
• AGC Support

Interface:

• Video Output Switchable TVI/AHD/CVI/CVBS

DS-2CE56D0T-I2PFB 2MP Doom Camera General:

• Material Plastic
• Dimension Φ 70 mm × 153.6 mm × 60.4 mm (Φ 2.76″ × 6.05″ × 2.38″)
• Approx. 165 g (0.36 lb.)
• Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication HIKVISION-C
• Language English
• Power Supply12 VDC ± 25%
• Consumption Max. 2.5 W
• IR range up to 20 m

Approval:

• Protection IP66
